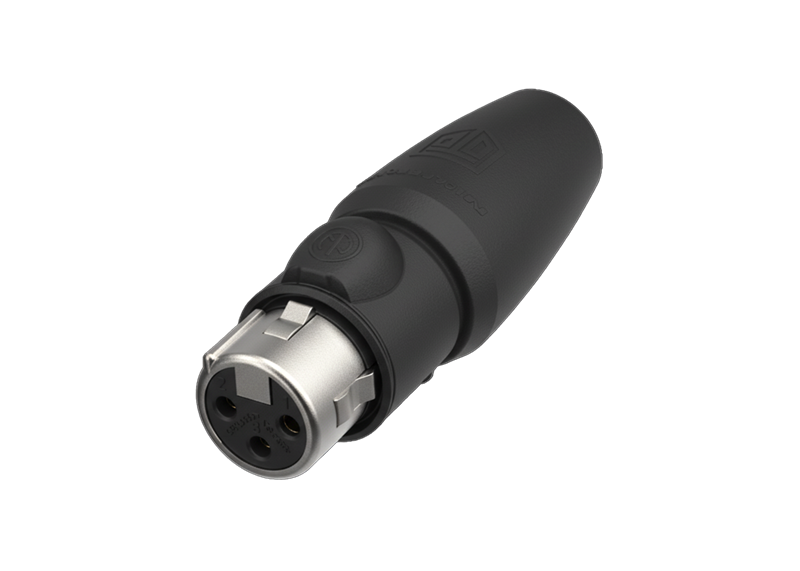

Neutrik 3 pin inline XLR True Outdoor Protection Series - female standard nickle housing - NC3FX1-TOP
NC3FX1-TOP
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.
$11.07
Back Ordered product
| Bushing | UV-resistant rubber |
| Cable OD | 5.0 - 8.0 mm |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA66) |
| Shell | Zinc diecast (ZnAI4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Sealing jacket | UV-resistant rubber |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
