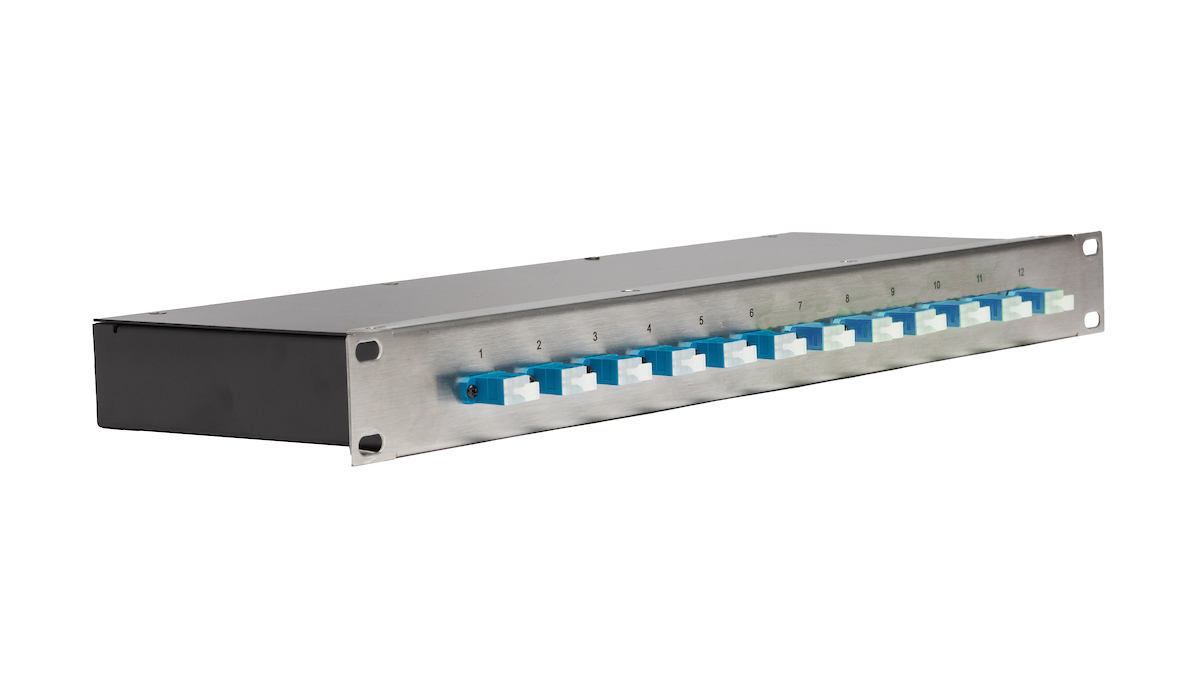

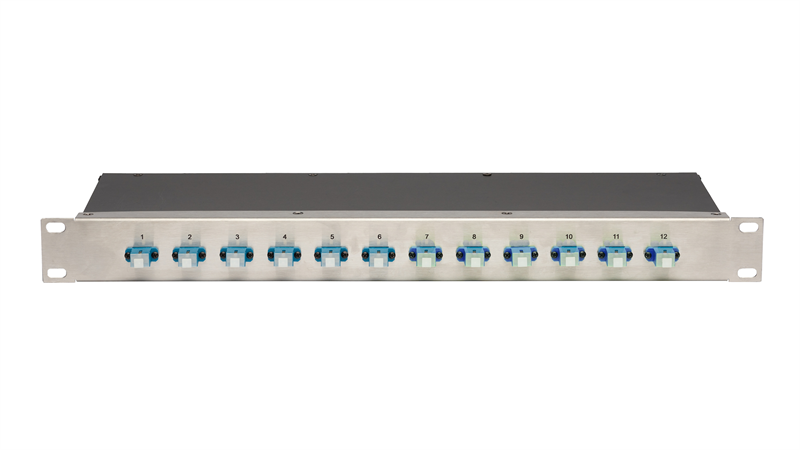

Fiber Splice Enclosure Stainless Steel 1RU 1x12 SC, Splice components included
X-FB1SS-SCSM-12
Clark's FB Series enclosures are an enclosed fiber distribution chassis with feedthrough fiber connectors for easy connect/disconnect using ST, SC or LC connectors. Available in 1 or 2 rack unit sizes and depths of 4" or 6". Using the highest quality components including Clark's One-Piece Premium SC adapter has a robust one-piece body design that offers increased side loading performance over standard ultrasonically welded two-piece designs. Each box enclosure comes with Fiber pigtails for splicing, Splice protection sleeves, multiple cable mount glands for armored or non armored options and internal management accessories.
This item typically ships in 3-5 days
Price is not set for this product.
| Front panel | Stainless Steel |
| Back chassis | Annodized aluminum |
| Dimensions | 19" x 1.75" x 5.75" (1RU) |
Splice box includes
| Description | QTY | Item # |
| SM SC Adaptor (installed) | 12 | FOA-SC-SM |
| Black SS Screws (installed) | 12 | HDW-S6/32FPUC-SSB |
|
SM SC Pigtails for splicing
|
12 | FOP-9SC001-SM-3 |
| Splice protector | 12 | FOC-SPL60 |
|
Romex cable clamp for armored fiber
|
2 | CWC-NER C-750 |
| Blank plug for small unused holes | 2 | DMP-2703 |
| Blank plug for large unused holes | 2 | DMP-2723 |
| Mini splice holder | 1 | SPLICEHOLDER1 |
| Cable gland for non-armored fiber | 2 | CG-1/2NPT |
|
Adhesive Bunny Clip
(for cable organization)
|
6 | FOA-CLIP |
